TMC300

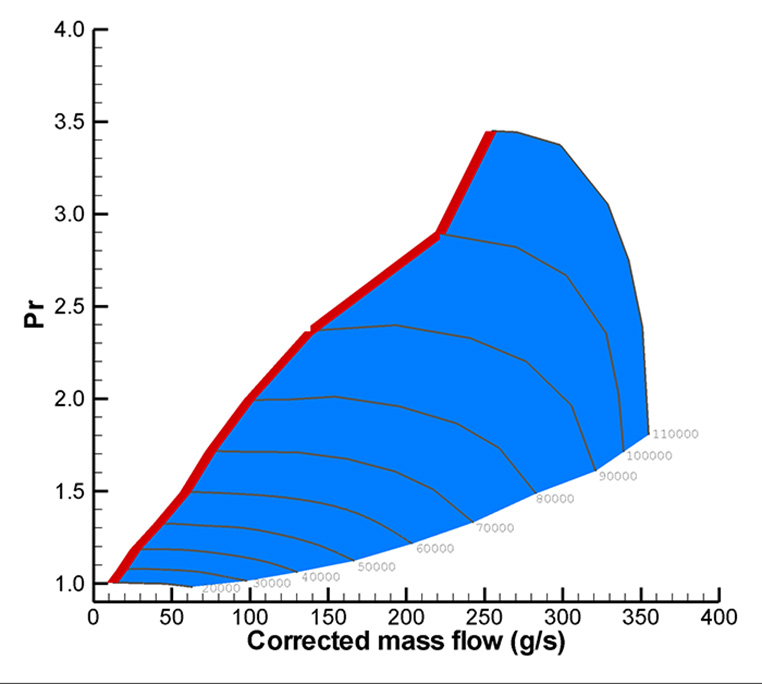

TMC300 turbine air compressor is designed for 180-300kW fuel cell system with air flow rate of 253g/s and pressure ratio of 2.8. The aerodynamic of compressor and turbine can be customize to match our customers' requirements.
SPECIFICATION
| Model | TMC300 |
| Fuel cell system power range | 180~300 kW |
| Type | Single-stage compression-Energy recovery |
| Bearing type | Air foil bearing |
| Start- stop life | >200000 cycles |
| Speed range | 20000~110000 rpm |
| Rated flow rate | 253 g/s |
| Rated pressure ratio | 2.78 |
| Continuous motor power | 43 kW |
| HV | 450~750 VDC |
| LV | 9~36 VDC |
| Ambient temperature | -30~75 ℃ |
| Inlet temperature | -30~45 ℃ |
| Cooling air inlet temperature | <90 ℃ |
| Coolant medium | Water/Glycol 50/50% |
| Coolant flow rate | ≥6 L/min |
| IP grade | IP67/IP6K9K |
| size | 384*242*263 mm |
| Weight | <19 kg |
