MH100
MH100 humidifier is designed for 60-120kw fuel cell system. The air leak is well controlled to be less than 9 SLPM at dry and wet condition. The air flow rate is suggested to be less than 6000 SLPM.
SPECIFICATION
| Model | MH100 |
| Fuel cell system power range | 50~120 kW |
| Rated air flow | 2000~6000 SLPM |
| Ambient temperature | -30~90 ℃ |
| IP grade | IP67 |
| Internal Air Leakage | ＜9.0 SLPM@180kPa.a |

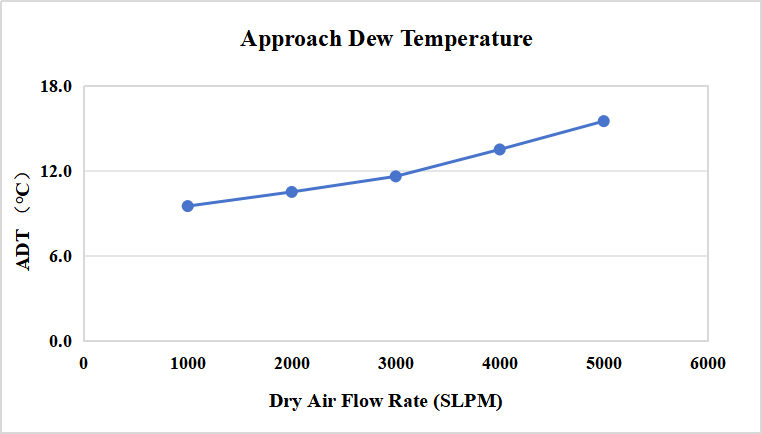

| Approach Dew Temperature | ＜20℃@6000SLPM |

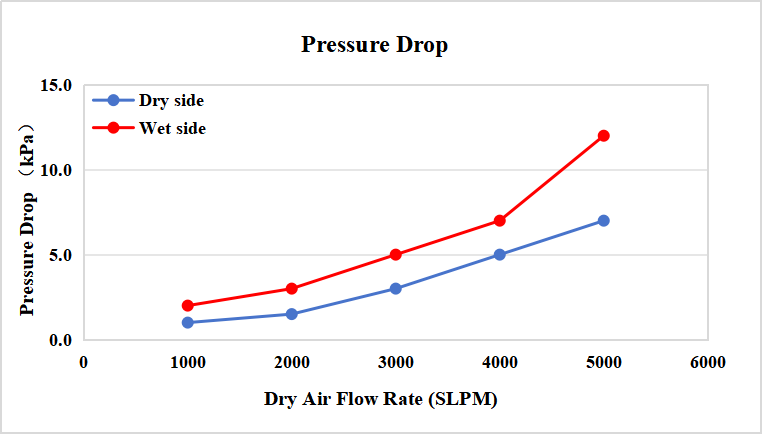

| Pressure Drop (Dry side, kPa) | ＜8kPa@6000SLPM |
| Pressure Drop (Wry side, kPa) | ＜15kPa@6000SLPM |
| Size | 399*223*180 mm |
| Weight | 5.6 kg |
