A humidifier for a fuel cell is a device designed to control and maintain the proper humidity level of the reactant gases, typically hydrogen and oxygen or air, supplied to the fuel cell stack.
MH100
MH100 humidifier is designed for 60-120kw fuel cell system. The air leak is well controlled to be less than 9 SLPM at dry and wet condition. The air flow rate is suggested to be less than 6000 SLPM.
SPECIFICATION
| Model | MH100 |
| Fuel cell system power range | 50~120 kW |
| Rated air flow | 2000~6000 SLPM |
| Ambient temperature | -30~90 ℃ |
| IP grade | IP67 |
| Internal Air Leakage | ＜9.0 SLPM@180kPa.a |

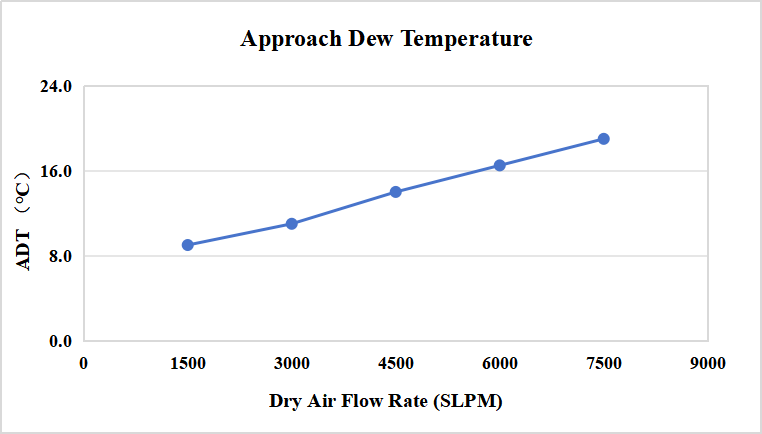

| Approach Dew Temperature | ＜20℃@6000SLPM |

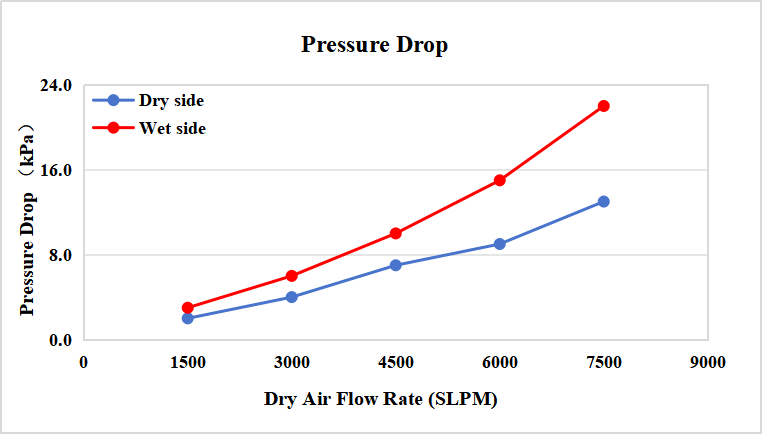

| Pressure Drop (Dry side, kPa) | ＜8kPa@6000SLPM |
| Pressure Drop (Wry side, kPa) | ＜15kPa@6000SLPM |
| Size | 399*223*180 mm |
| Weight | 5.6 kg |
KEY FIELD
MH150
MH150 humidifier is designed for 120-150kw fuel cell system. The air leak is well controlled to be less than 9 SLPM at dry and wet condition. The air flow rate is suggested to be less than 9000 SLPM.
SPECIFICATION
| Model | MH150 |
| Fuel Cell System Power Range | 120~150 kW |
| Rated Air Flow | 6000~9000 SLPM |
| Ambient Temperature | -30~90 ℃ |
| Ip Grade | IP67 |
| Internal Air Leakage | ＜15.0 SLPM@180kPa.a |
| Approach Dew Temperature | ＜25℃@9000SLPM |
| Pressure Drop (Dry Side) | ＜15kPa@9000SLPM |
| Pressure Drop (Wry Side) | ＜25kPa@9000SLPM |
| Size | 414*313*182 mm |
| Weight | 7.6 kg |
KEY FIELD
